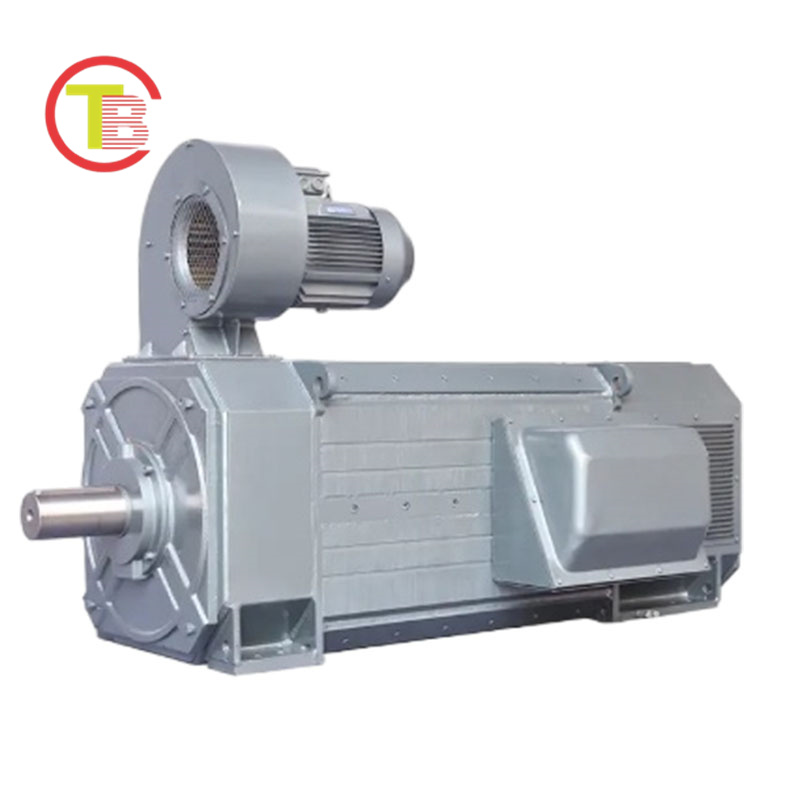

| Parameter Item | Content |
| Model | Z500 / Z560 / Z630 / Z710 |
| Application | DC motors for rolling mills and mixers |
| Type | Heavy Industry Motor |
| Structure | Shunt Wound |
| Commutation | Brush |
| Frame Size | 500mm, 560mm, 630mm, 710mm |
| Rated Power | 350kw – 2000 kw |
| Speed | 100-2000rpm |
| Overload | Continuous 100%, 2 hours 125% overload, 200% for 20 seconds. |
| Protection Class | IP21S, IP23, IP44, IP54 |
| Cooling Method | IC06, IC17, IC37, IC86W |
| Mounting | IMB3, IMB35, IMV1, IMV15 |
| Field Voltage | 180V, 220V, 310V, 330V |
| Armature Voltage | 400V, 440, 660V, 700V, 850V |
| Insulation Class | F, H |
| Duty | SI |
| Thermistor | 6 PT100 windings, 2 bearings |
| Heater | Space Heater |
| Certification | CCC, CE |
| Standard | GB755 & IEC 600-34 |
| Encoder | According to customer requirements |
