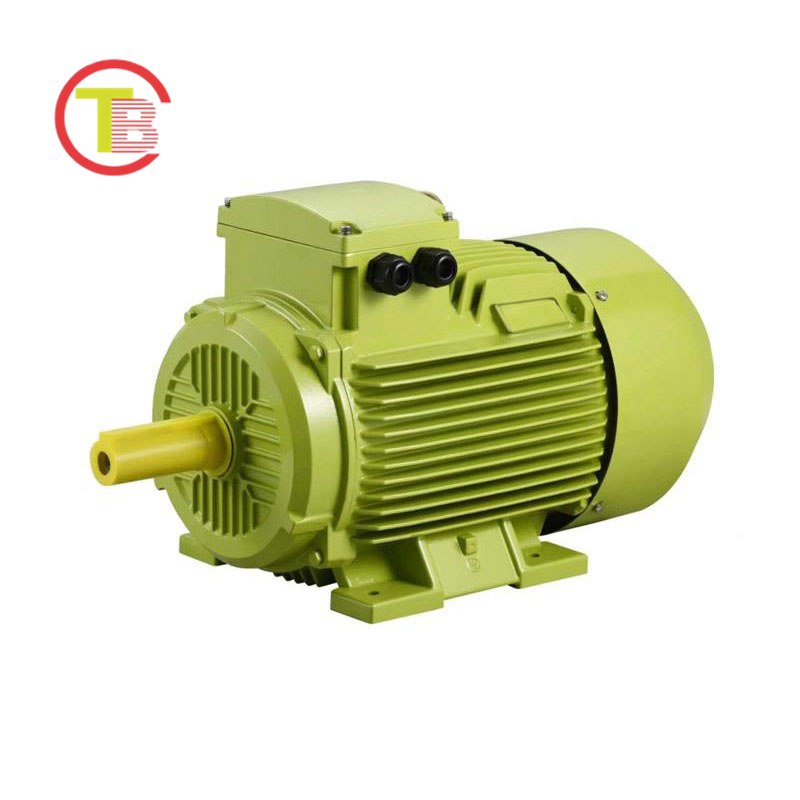

Asynchronous induction motor YE5

Categories :
Contact Now
  • Description
Type Ratod
power		 Rated
voitage		 Fated
current		 Ranted speed Efticiency Assistance factor Torque Rated Current Rated Torque Rated torque Noise Welght
kw V A r/min % % Tst/Tn Ist/n Tmax/Tn   N.m dB(A) Kg
Synchronous Speed 3000r/min
YE5-80M1-2 0.7S 380 1.6 2880 86.3 0.83 22 8.5 23   24 56 20
YE5-80M2-2 11 380 23 2880 87.8 0.83 22 8.5 23   3.5 59 21
YE5-905-2 1.5 380 3.0 2890 889 0.85 22 9.0 23   4.8 59 26
YE5-90L-2 22 380 43 2890 90.2 0.86 22 9.0 23   7.0 64 30
YE5-100L-2 3 380 5.8 2910 91.1 0.87 22 9.5 2.3   9.6 64 38
YE5-112M-2 4 380 75 2910 918 0.88 22 9.5 23   128 65 51
YE5-13251-2 5.5 380 10.3 2945 926 0.88 20 9.5 23   175 71 76
YE5-13252-2 7.5 380 13.7 2940 93.3 0.89 20 9.5 23   239 71 82
YE5-160M1-2 11 380 20.0 2950 940 0.89 20 9.5 2.3   35.0 73 139
YE5-160M2-2 15 380 27.1 2950 94.5 0.89 20 9.5 2.3   47.8 73 152
YE5-160L-2 185 380 33.3 2950 94.9 0.89 2.0 9.5 2.3   58.9 76 171
YE5-180M-2 22 380 39.5 2965 95.1 0.89 20 9.5 2.3   70.0 76 230
YE5-200L1-2 30 380 53.6 2970 955 0.89 20 9.0 23   955 76 281
YE5-200L2-2 37 380 65.9 2975 958 0.89 20 9.0 2.3   117.8 78 301
YE5-225M-2 45 380 80.0 2975 95.0 0.89 20 9.0 23   143.3 78 354
YE5-250M-2 55 380 97.6 2980 96.2 0.89 20 9.0 2.3   175.1 79 496
YE5-2805-2 75 380 133 2950 96.5 0.89 1.8 8.5 2.3   2388 80 5T8
YE5-280M-2 90 380 159 2950 96.6 0.89 1.8 8.5 23   2865 80 665
YE5-315S-2 110 380 194 2975 968 0.89 18 8.5 23   3502 88 870
YE5-315M-2 132 380 233 2975 96.9 0.89 18 8.5 23   4202 88 960
YE5-315L1-2 160 380 282 2975 97.0 0.89 18 8.5 22   509.3 88 1045
YE5-315L2-2 185 380 325 2975 97.1 0.89 18 8.5 22   5889 88 1095
YE5-315L3-2 200 380 351 2975 972 0.89 18 8.5 22   636.7 88 1095
YE5-355M1-2 220 380 382 2985 972 0.90 1.6 8.5 22   700.3 92 1650
YE5-355M2-2 250 380 429 2985 972 0.91 1.6 8.5 22   7958 92 1710
YE5-355L1-2 280 380 481 2955 972 0.91 1.5 8.5 22   8913 92 1810
YE5-355L2-2 315 380 541 2985 972 0.91 1.6 8.5 22   1003 92 1860
